Customized Design, Site Selection, Hardware Design/integration, Solution Deployment, Network Connectivity, Ongoing Maintenance & Support
IP Transit Available Globally, 1T+ Backbone Capacity, SD-WAN, Leased Lines, CN2/CT, CMI, CU, NTT, Telia Optimized Networks
Real-time support by Online Chat, Instant Message, Phone. Full life cycle service from free consultation, solution design, deployment and ongoing support.
Tier-3+ Data Centers, with comprehensive certifications. Top level networking equipments for 100% Network SLA.
Flexible connectivity solution (e.g.SD-WAN, Leased-line, IP Transit etc.) available for optimized Hybrid Cloud integration
24x7 SOC/NOC Support, combined with 1T+ DDoS Migration capability to protect your services around the clock
AquaNX offers Managed Colocation Across Data Centers Around The Globe, with Connectivities Through IP Transit, SD-WAN and Leased Line.

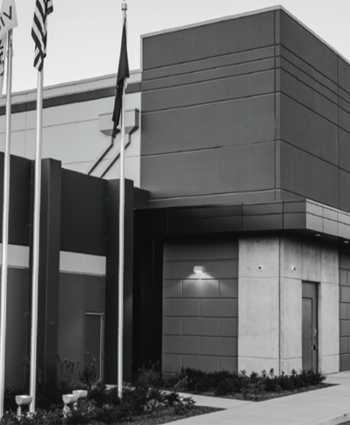

Located in the heart of Silicon Valley
135,000 sq. ft. facilty on 4-acres
Security fence surrounds perimeter of property with single point of entrance
5.4MW of critical power capacity at N+1 conifguration 12 UPS units ,11 generators
54 CRAHs at Building I ,22 CRAHs at Building II
Carrier-neutral facility with leading providers e.g. CT CN2, 4134, CMI, CU, ATT, NTT, Telia, GTT, Comcast, Cogent, HE, Zayo
1G to 10G connectivity 11 Great Oaks Blvd Carrier Hotel Internet Exchange Points (IXPs)
Access to Multiple public cloud platforms, including Ali Cloud, AWS, Google Cloud, Microsoft Azure
Card key ,2-factor biometric authentication (finger print and iris scan)
Compliance: SOC 1, SOC 2, HIPAA,PCI,ISO 27001,HITRUST
Monitored 24x7x365 by experienced on-site engineers
2(N+1) UPS redundancy
18 MW critical load UPS capacity
1,500 W/SF power density
N+1 cooling redundancy
Hot/cold aisle configuration
100% power SLA
1.3 PUE rating
Subsea connectivity to Asia-Pacific
100 Gbps network backbone, scalable to 400 Gbps
3 Tb total network capacity
Layer 2 access to 80 on-net carriers
Proactive Layer 3 and Layer 4 DDoS protection
100% network and bandwidth uptime commitment
424,000+ sq. ft. of data center space,
Partial cabinets, full cabinets, cages, private suites and build-to-suit,

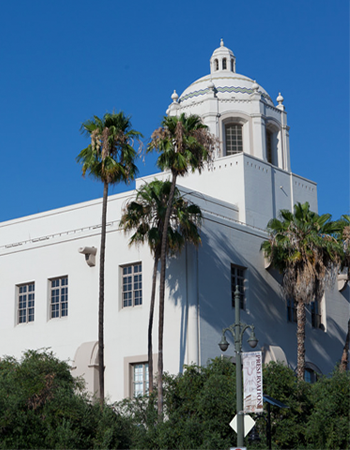

A cross connect to 1 Wilshire Building, to 300 Network Providers ,
Any2Exchange® for Internet peering and BBIX,
Diverse utility feeds,
24/7/365 in-house and on-site security qualified personnel,
Key cards, biometric scanners, 8’ perimeter fence, and controlled site access,
N, N+1, 2N UPS redundancy,
N+1 mechanical systems,
100% uptime SLA,
State-of-the-art mission-critical controls and monitoring,
Centralized N+1 chiller system with evaporative cooling towers utilizing a water-side economizer design,
High-efficiency UPS systems,
150 lbs./sq. ft. throughout facility,
Building Info:54,663 square feet of space

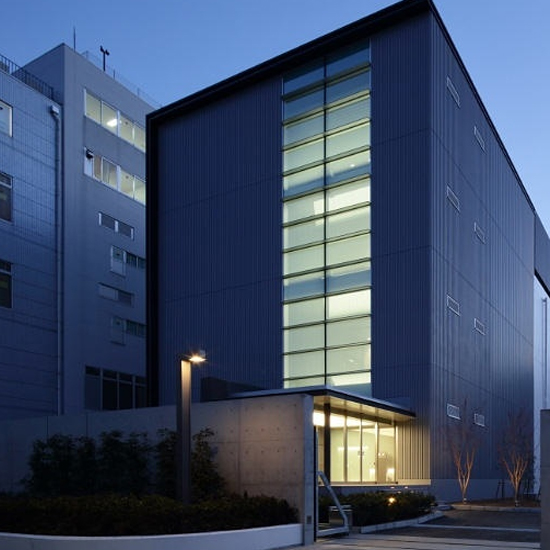

DC Description: Y5 is housed in a 4-story steel purpose-built facility with earthquake resistant construction, offering over 700 cabinets at full build
UPS Systems Generator: Provide a minimum N+1 redundancy to maximize uptime availability. Infrastructure includes uninterruptible power supply (UPS) systems to prevent power spikes, surges and brownouts, and redundant backup diesel generators provide additional runtime. Using proprietary automated telemetric systems, IBX engineering team can monitor all power system components on-site or remotely, to respond quickly to any situation.
Security:All doors, including cages, secured with biometric hand geometry readers, kinetic and key locks on closed cabinets, and CCTV digital camera coverage of the entire center, including cages
Emergency Protection: Fully addressable fire detection system in all areas, aspirated early warning smoke detection system (monitored 24x7x365). Dry pipe pre-action sprinkler system and Inergen gas suppression system in technical areas.
DC Description:Tier 3+ data center, > 6,000 racks in common areas/private cage
UPS Systems: 2N Utility Power System configuration with 15 mins. battery backup
Generators: 2N design, Standard power zone: average 3kVA per rack, High power zone: upto 9kVA per rack, Multiple fuel tanks planned capacity 85,000 liters
Security: 24 hours surveillance CCTV with digital recording, 24 hours entrance security guards to control access, Access control systems / trap doors
Emergency Protection:Gas based FM200 fire suppression system, Double interlock pre-action sprinkler, Distance type water detection system
Building Info:26,743 m2 of gross space & 7 data floors
DC Description: Scalable IT space, purpose built, exceeds tier 3 operational performance
UPS Systems:Utility power supply capacity of 25MVA (current and planned). Technical (IT) power supplied by on-site 2N static UPS in the main building and by diesel rotary UPS with N+1 redundancy in the extension wing
Generators: 22kV utility supply with N+N redundancy. Mechanical systems supported by diesel backup generator system in the main building with N+1 redundancy
Security: Operations centre & security guard patrols manned 24x7x365. Continuous CCTV surveillance of external and internal areas, CCTV records kept for 31 days, with comprehensive intruder detection and alarms systems in all areas
Emergency Protection:Fully addressable fire detection system in all areas, aspirated early warning smoke detection system (monitored 24x7x365). Dry pipe pre-action sprinkler system and Inergen gas suppression system in technical areas
Building Info:75,000 m2 gross floor area, 10,065 m2 computer room, 60cm access floor, 5.1m floor height
DC Description: Tier level: similar to tier 3 level, modular system, Adjustable cooling duct system, panel board, cable tray, etc.
UPS Systems: Duplicated UPS power via STS, Average 3.3 ~ 4.4 kW/Rack
Generators: Dualized, N+1 system with diesel generator, N+2 distribute UPS and dualization of storage battery system
Security:Zoom and Titlt CCTV, Speed Gate, RF-card in elevator between floors, Bio-scan and RF-card at computer room entrances
Emergency Protection: 24/7 control room and satus monitor, Integrated management of every IDC system (monitor & controls network, power, constant temperature and humidity, fire-fighting, security system, etc.), SOP for Error prevention
